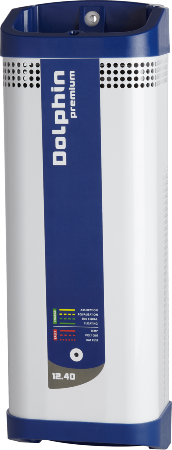

Dolphin Premium Battery Charger 12V 40A Three Outputs 115/230VAC

The perfect choice for sailboats and other pleasure craft for all coastal yachting activities. Safe, robust and efficient. Just Plug and Play.100% compatible, DOLPHIN PREMIUM chargers will work with any battery on the market.

$1,259.50
* Purchase Now

  • Make: Dolphin
  • SKU/Model Number: 399030
  • Name: Dolphin Premium Battery Charger 12V 40A Three Outputs 115/230VAC

Input Voltage 115V / 230V (+/- 15%) Automatic Switchover

Frequency 50Hz / 60Hz (+/-10%)
Cos 0.9 typ
Efficiency 80% typ
Max. Current 115V/230V 7A / 3.5A
Input Fuse (5x20mm) T10A 250V
Outputs 3 isolated outputs
Charging curves 4 programs, position selected by dip switch NEW
- one of which is LiFeSO4 with integrated BMS
Charging curve IUUo + weekly automatic equalization
Weekly equalization Automatic
Voltage share +/-2%
Ripple < 1% pp (BW < 20MHz)
Output Fuse (auto. mini) 2 x F25A 32V
Display Tricolour LED
Night/Silent Mode Manual switch
Operating Temperature -10°C to +50°C
Operating Humidity 10% to 90% (without condensation)
Ventilation Forced fan cooling
Security EN60335-2-29 (2002)
Housing Powder coated aluminium
Mounting 2 screws 4mm
Input terminals 20A 230V, 4mm² max WINSTA - WAGO 770.813 / G11-000
Battery terminal 40A 630V, 10mm² max PHOENIX CONTACT PC6-16/4-G1F,16
CAN BUS No
Dimensions 96 x 120 x 353 mm
Weight 2,25 Kg
