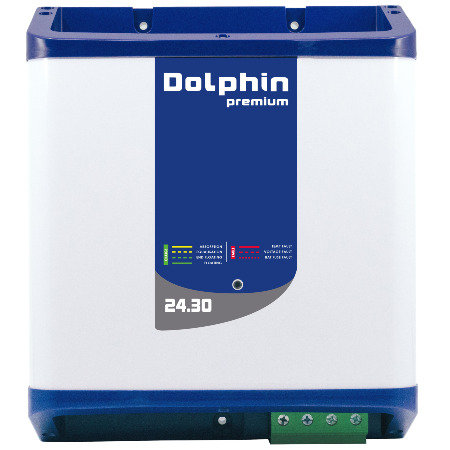

The perfect choice for sailboats and other pleasure craft for all coastal yachting activities. Safe, robust and efficient. Just Plug and Play.100% compatible, DOLPHIN PREMIUM chargers will work with any battery on the market.
Input Voltage 115V / 230V (+/- 15%) Automatic Switchover Frequency 50Hz / 60Hz (+/-10%) Cos phi 0.9 typ Efficiency 80% typ Max. Current 115/230V 12A / 6A Input Fuse (5x20mm) T16A 250V Outputs 3 isolated outputs Charging curves 4 programs, position selected by dip switch - one of which is LiFeSO4 with integrated BMS Charging curve IUUo + weekly automatic equalisation Weekly equalisation Automatic Voltage precision +/-2% Ripple < 1% pp (BW < 20MHz) Max Current 30A Output Fuse (Auto.) 3 x F15A 32V Display Front LED or remote TOUCH View (option) Night/Silent Mode Manual switch Operating Temperature -10°C to +50°C Operating Humidity 10% to 90% (without condensation) Ventilation Forced fan cooling External com CANbus EMC EN61000-6-3, EN61000-6-1 Security EN60335-2-29 (2002) Housing Powder coated aluminium Mounting 3 x 4mm screws Input terminals 3 points, 20A 230V, 4mm² max. Ref.:770.813/G11-000 (WINSTA - WAGO) BAT acces 4 points, 60A, 35mm² max Other acces TOUCH (RJ11, 4 points), CAN (Micro-Fit, 6 points), UART (RJ12, 6 points) Dimensions 284 x 240 x 115 mm Weight 3,15 Kg
Get in touch with the team to learn more or request a quote about the Dolphin Premium Battery Charger 24V 30A Three Outputs 115/230VAC.
