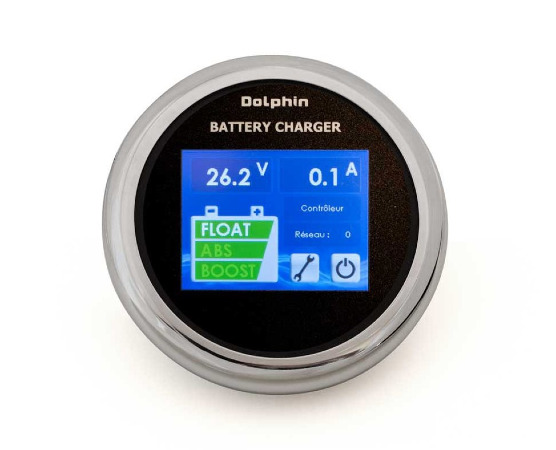

TouchView is an accessory designed to monitor and control the
DOLPHIN PRO 12V and 24V chargers. It’s easy to connect directly to the
charger and can be used remotely to check the charging status from a
distance.
You can install the device anywhere on your boat and connect it to any onboard system using its CANBus interface.
This device features a touch-screen display that lets you easily
monitor both your charger and battery bank. It shows the charging
current, selected charging mode (boost, absorption, or float), and the
maximum power being delivered at any given time.
The built-in alarm relay will alert you if there are any problems,
such as issues with temperature, voltage, fuses, or the charger’s
output.
TouchView works in tough conditions, with a temperature range of
-10°C to +50°C and humidity levels from 10% to 70% (no condensation).
The package includes: 1x TouchView Control, chrome bezel, 3m connection cable, fixing screws, and a user manual.
Product Features:
- Flush-mounted touch screen remote control
- SuperSmart monitoring
- Durable electrical components
- 2.4-inch TFT screen with adjustable color and brightness
- Allows you to use grid power, even when shore power output is low
- Supports 5 languages (English, French, Italian, Spanish, and German)
- Voltage: 12V
- Cut-out size: 73mm
- Dimensions (Diameter x Depth): 93 x 23mm
