Stabicraft 2500 Ultracab XL

Hull Length	7.62m (25.0ft)	Beam Width	2.54mm* (100in*)
Boat Height Min/Max	2.57m (101.1in)	Dry Hull Weight	1753kg (3865lb)
Maximum Persons	9	Maximum HP Limit	400hp
Min Recommended HP	300	Motor Leg Length	25/30/25 Trimount
Max Aux Motor HP	25	Internal Beam	1.97mm (77.7in)
Internal Gunnel Height AFT	826mm (32.5in)	Outside Chine Width	2.31m (90.9in)
Deadrise AFT	19°	Life Ring Thickness	4mm + 4mm (0.16in + 0.16in)
Hull Thickness	6mm (0.24in)	Fuel Tank Capacity	378L (100gal)
Total Sealed Chamber Volume	2096L (74.0ft³)	Life Ring Chamber Volume	1361L (48.1ft³)
NZ CPC boat safety standards	✔	US Coastguard boat safety standards	✔
ABP boat safety standards	✔

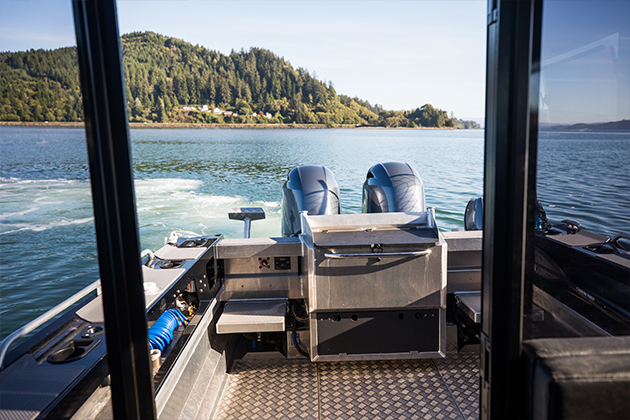

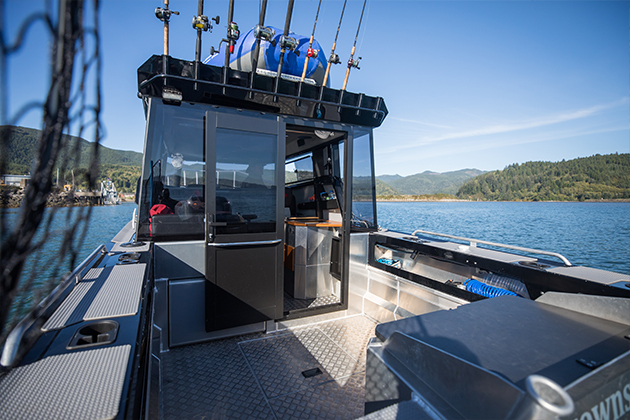

The rear cabin lockable door and huge glass panels make for a secure and great viewing experience

Lockable rear cabin bulkhead

The ‘XL’ is a denomination added to the smaller cabin version in the 2500 Ultracab®. It effectively creates a longer cabin through huge glass panels and rear bulkhead lockable door. The view either from the cabin or from the deck is largely uninterrupted and, with the door open, creates a great ‘flow’ to and from either space.

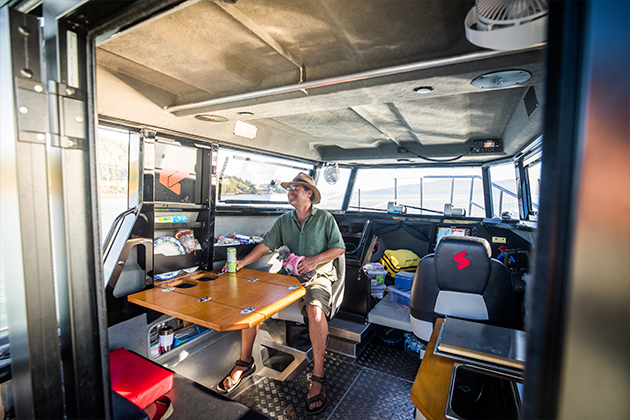

Seating for 6 and convenient dining through a clever fold down table

Cabin seating and table

The 2500 Ultracab® XL has seating for 6 with 2 x Elite Bolster helm and passenger seats, 2 x fold-down troop style seats and a port seat box for 2 people. A port-side drop-down table folds out from the cabin wall revealing a neat storage area for condiments and usable dining space complete with cupholders.

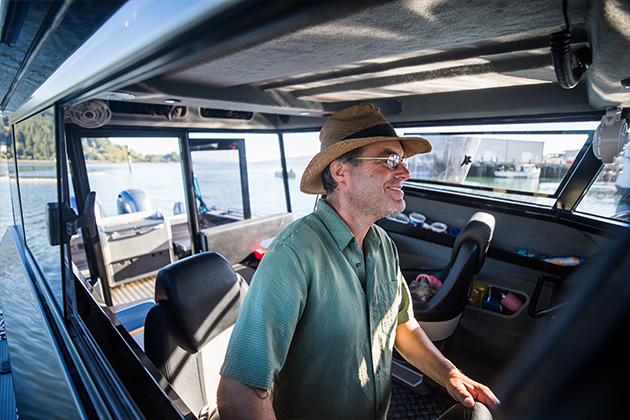

Shock mitigating Airwave pedestals make for a more comfortable ride

Elite Bolster seats on Airwaves

The Elite Bolster seats ca be found across the Stabicraft® range however on the 2500 Ultracab XL these are supported by a shock mitigating Airwave pedestal. The Airwave is a very compact, adjustable air pressured pedestal making the ride on the 2500 Ultracab® XL more comfortable again.
